Introduction

XmlMan is an elegant XML-to-Rhai transpiler for Ewwii, designed to make UI definitions and data structures concise, expressive, and scriptable. It combines the readability of XML with the flexibility of Rhai scripting, giving you precise error reporting without the struggle of Ewwii's Rahi API's.

Installation

XmlMan is available in the eii-manifests. So you can use eiipm to to install it.

Simply run the following command and you will have XmlMan installed:

$ eiipm i xmlman

Configuration

This section covers how you can configure your widgets with XmlMan.

XmlMan supports every single widget that ewwii supports, so while not mandatory, checking out the widget section in ewwii docs will help you understand quicker.

Configuring

Making a configuration with XmlMan is really easy and straightforward due to the declarative style of xml.

Just define what the UI looks like, and you will be done!

Prerequisites

Before using XmlMan, you should have a basic understanding of XML, its structure, tags, and attributes. This documentation assumes you're already familiar with these concepts and focuses on how XmlMan extends or interacts with them.

If you're completely new to XML, it's worth exploring some tutorials or online resources to get a foundational grasp. Understanding XML will help you navigate XmlMan more effectively and avoid confusion.

Basic Setup

<!-- The <Root> element is important! -->
<Root>
    <Window name="Foo">
        <Label text="boo"/>
    </Window>
</Root>

Let's analyze the above config.

At the top of this example, we can see a <Root> element (see rules#rule-1) in which is a wrapper that contains your configuration. It is a mandotary requirement as xml can't handle multiple widgets at the top level.

And inside the root, we can see a <Window> element. This element is basically an application window to which you can add widgets to. And the <Label> element inside the window is a label widget which shows up inside our window when its opened.

Properties

Even if you have the layout of your window ready, it wont really do anything unless we use properties.

To understand properties, lets go back to the previous example again.

From the previous example, lets focus on the <Label text="boo"/> element. See the text attribute? Yeah, that is the property of the widget.

XmlMan does not bother validating the attributes on its own as it would be very complex. Instead, it just directly transpiles that attribute to the appropriate rhai attribute.

For example, <Label text="boo"/> would get converted to label(#{ text: "boo" }).

To use properties efficiently, checkout the widget properties section in ewwii docs.

Special properties

Now that you have learnt of properties, lets now learn of the special properties that is only valid in XmlMan.

These properties exist, because we can do something like this in rhai:

enter([
  defwindow("example", #{
    // the following thing
    geometry: #{
        x: "0%",
        y: "2px",
        width: "90%",
        height: "30px",
        anchor: "top center"
    },
  }, label(#{ text: "example content" }))
])

Here we can see that the geometry property has nested properties within itself which is not possible to implement in xml.

So, to fix this issue, XmlMan intercepts special properties assigned to a <Window> and translates it to the rhai equivalent.

All geometry based properties:

Special Property	Description
`geometry.x`	The x position of the window
`geometry.y`	The y position of the window
`geometry.width`	The width of the window (in `px` or `%`)
`geometry.height`	The height of the window (in `px` or `%`)

All reserve based properties:

Special Property	Description
`reserve.side`	Where a window manager should reserve space
`reserve.distance`	How much space window manager should reserve

NOTE: The reserve property is only for x11 and will not work on wayland.

Configuration Rules

These rules ensure that the structure and logic of your configuration remain flexible, safe, and prone to less runtime errors.

Currently there are only 2 rules, but as XmlMan matures, many more rules may appear.

Rule 1 - Use a `<Root>` Element

Always wrap all widgets and configuration elements within a single <Root> element. This safely aligns with ewwii's model and also allows having multiple elements in a configuration because in xml, we may only have root 1 element.

<Root>
    <Window name="1">
        <!-- ... -->
    </Window>

    <Window name="2">
        <!-- ... -->
    </Window>
</Root>

Rule 2 - Avoid Orphaned Poll/Listen Handlers

Poll and Listen handlers must always be defined at the root level and not within other widgets like <Box> or <Window>. Ewwii ignores orphaned handlers but XmlMan rejects it directly for safe configuration.

<Root>
    <!-- valid -->
    <Poll var="valid"></Poll>
    <Window name="1">
        <Box>
            <!-- orphan -->
            <Poll var="orphan"></Poll>
        </Box>
    </Window>
</Root>

This subsections covers all the ewwii widgets and how you can create one within XmlMan.

Top Level

defwindow <Window></Window>
poll <Poll></Poll>
listen <Listen></Listen>

Containers

box <Box></Box>
centerbox <CenterBox></CenterBox>
eventbox <EventBox></EventBox>
overlay <Overlay></Overlay>
stack <Stack></Stack>

Controls

button <Button></Button>
slider <Slider></Slider>
input <Input></Input>
checkbox <CheckBox></CheckBox>
color_button <ColorButton></ColorButton>
color_chooser <ColorChooser></ColorChooser>
combo_box_text <ComboBoxText></ComboBoxText>

Feedback & Display

tooltip <ToolTip></ToolTip>
progress <Progress></Progress>
circular_progress <CircularProgress></CircularProgress>
graph <Graph></Graph>
image <Image></Image>
label <Label></Label>
calendar <Calendar></Calendar>

Layout & Behavior

transform <Transform></Transform>
revealer <Revealer></Revealer>
scroll <Scroll></Scroll>
expander <Expander></Expander>

Expressions

Expressions are one of the most important concepts in xmlman which makes it more flexible.

XmlMan let's you use rhai expressions within a widget property because it transpiles to rhai at the end anyway.

Not going into depth about expressions here as we will cover it in the upcomming subsections under this section.

Expressions

XmlMan supports writing Rhai expressions inside strings. This is both a powerful feature and a potential weakness.

Why it's a superpower

This feature allows XmlMan to be dynamic rather than purely static, giving you more flexibility.

Why it's a weakness

It’s a weakness because it allows arbitrary Rhai code. XmlMan cannot validate these expressions at parse time, so they may cause errors during runtime.

How to use expressions

Expressions are written inside ${}.

Example:

<?xml version="1.0" encoding="UTF-8"?>

<Root>
    <Window name="Banana">
        <Box>
            <!-- The expression inside ${} is a Rhai expression -->
            <Label text="${2 + 2}"/>
        </Box>
    </Window>
</Root>

Special Expression: `@no_quote`

XmlMan provides a special expression called @no_quote that allows you to assign non-string values (like booleans, integers, or other raw data) to element attributes. Normally, attribute values are wrapped in quotes and interpreted as strings. Using @no_quote tells the transpiler not to quote the value.

How It Works

In XmlMan, XML attributes are normally always quoted, which means values are treated as strings. Sometimes, you want to assign raw values like booleans or numbers (without quotes). The @no_quote expression makes this possible.

XML Example

<?xml version="1.0" encoding="UTF-8"?>

<Root>
    <Window name="Banana">
        <Box>
            <!-- @no_quote(false) ensures this is a boolean, not a string -->
            <Label text="foo" visible="@no_quote(false)"/>
        </Box>
    </Window>
</Root>

Here, visible="@no_quote(false)" assigns a boolean false instead of the string `false`.

Transpiled Rhai Code

When the above XML is transpiled, it produces the following Rhai code:

fn Banana_child() {
    box(#{}, [
      label(#{
        "text": `foo`, // string
        "visible": false // boolean
      })
    ])
}

enter([
    defwindow("Banana", #{  }, Banana_child())
])

Important

If you write @no_quote(val) some_other_val, the engine will still wrap the entire value in quotes. Only the direct use of @no_quote(val) ensures the value remains unquoted.

Caution

When using @no_quote, XmlMan cannot guarantee that the resulting code is valid. Make sure the values you pass are appropriate for the context.

Errors

Errors are one of the main reasons why you should use XmlMan. It uses the ariadne crate to output pretty errors that everyone can understand.

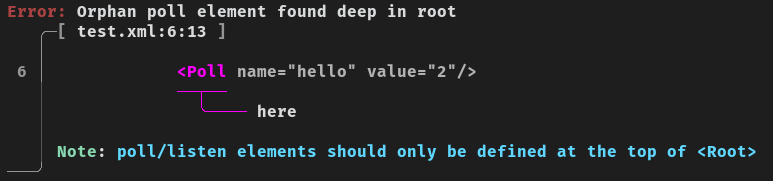

Here is an example error:

XmlMan Error

Check Errors in XmlMan

XmlMan performs several validation checks before compiling XML to Rhai. If a check fails, you will receive a check error that helps identify the issue.

What a Check Error Looks Like

A check error typically contains:

Error level: e.g., [ERROR]
Check error ID: e.g., [CE01]
Message: describes what went wrong

Example

[ERROR] [CE01] Enter not found in internal tree. A <Root> should exist in the xml markup.

Here’s what this means:

[ERROR]: Severity level
[CE01]: Check error ID, which you can reference in the documentation
Message: Explains the missing <Root> element

All check errors

Are you curious to learn about all check errors in XmlMan, or just want to look up a check error?

Checkout the check error list.
